Precision 1/2" CSB201-8 Special Insert Ball Bearing | 1/2" Bore x 40mm Outer Diameter x 22mm Width | Industrial & Agricultural Light-Duty Power Transmission Unit (Cross: FHSR201-08/FHSR201-8, Timken/INA YA008RR/YA008-NPP, NTN ASS201-008N, FYH SBB201-8KG5, AMI BR1-8, Browning SLS108)

⚙️ Specification & Global Interchange Hub

• Part Number Designation: CSB201-8 (1/2 Inch Light-Duty Insert Series)

• Comprehensive Brand Interchange Directory:

  • Universal Industrial Codes: CSB201-8 / FHSR201-08

  • Timken / INA Equivalent: YA008RR / YA008-NPP

  • NTN Equivalent: ASS201-008N

  • FYH Equivalent: SBB201-8KG5

  • AMI Equivalent: BR1-8

  • Browning Equivalent: SLS108

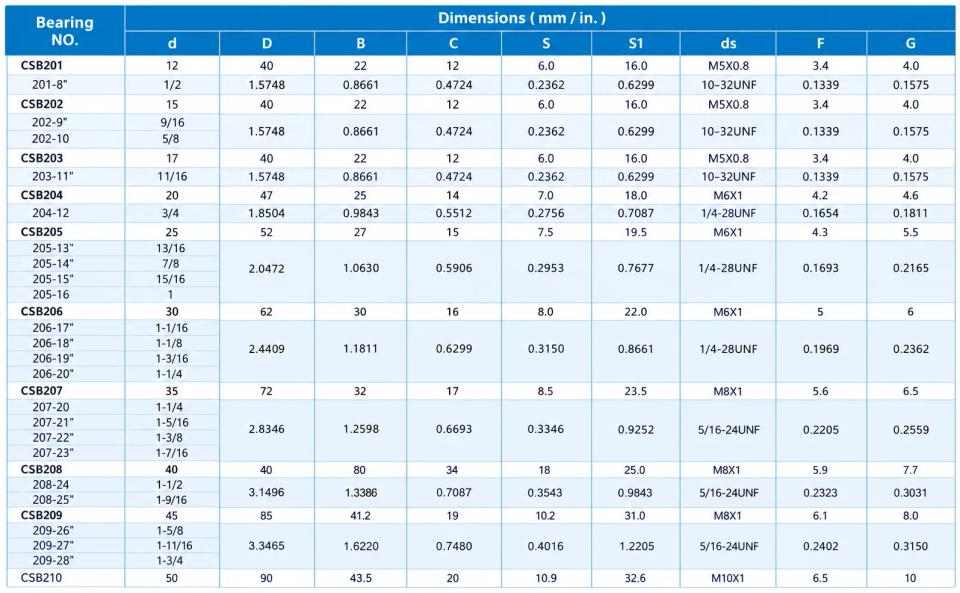

• Imperial Bore Dimension (d): 1/2 Inches (approx. 12.70 mm)

• Outer Ring Diameter (D): 40 mm

• Total Assembly Width (B): 22 mm (Compact profile optimized for space-saving housing assemblies)

• Material Architecture: High-Grade Chrome Steel (Vacuum degassed for enhanced fatigue life, wear resistance, and structural stability)

🌟 Engineering Architecture & Performance Merits

• Optimized Locking Design: Engineered for secure shaft mounting, minimizing slippage and ensuring consistent rotational alignment under regular operating cycles.

• Spherical Outer Ring Contour: Self-aligning outer ring profile accommodates minor static misalignments between the shaft and housing supports.

• Effective Contact Sealing: Equipped with dependable seals to successfully retain premium lithium grease while blocking out external dust and ambient moisture.

• Pre-Lubricated & Maintenance-Ready: Factory-filled with high-performance grease for immediate deployment and long-term trouble-free operation.

🚛 Target Industrial Sectors & Deployment Fields

• Agricultural Equipment: Light grain handling gear, small seeders, lawn and turf care implements, and auxiliary drives.

• Material Handling: Compact roller conveyors, packaging lines, and automated sorting modules.

• General Industrial Machinery: Small electric motor pulleys, ventilation fans, and light workshop apparatus.
