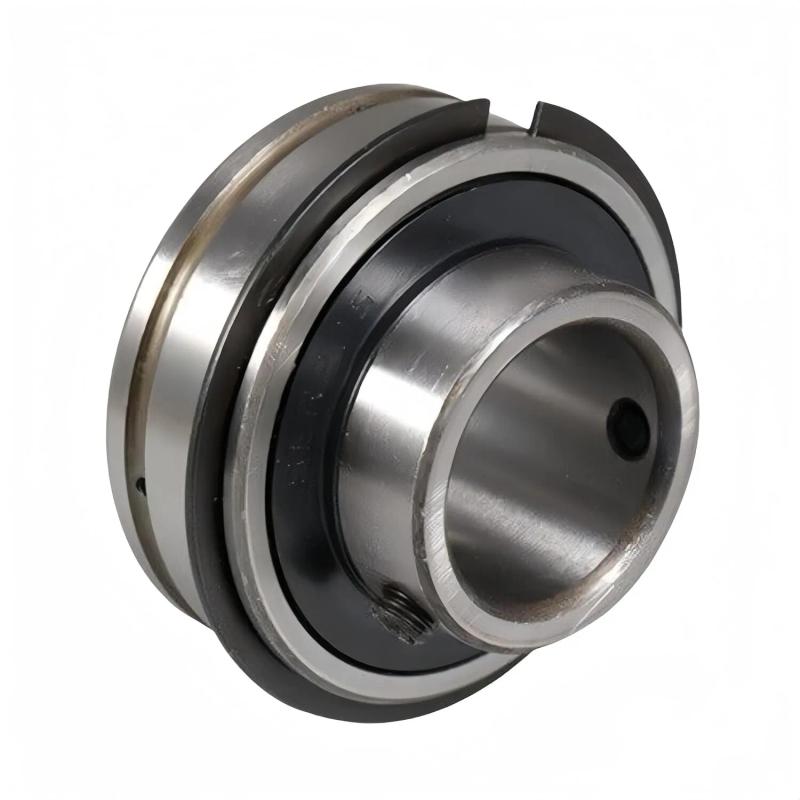

SER206 30mm Metric Insert Ball Bearing | 30x62x22.2mm, Eccentric Locking Collar for Agricultural & Conveyor Machinery

⚙️ Specification Overview

• Part Number: SER206 (SER206-30)

• Bore Diameter (Inner): 30 mm

• Outer Diameter: 62 mm

• Total Width / Thickness: 22.2 mm (Wide inner ring with eccentric locking side)

• Bearing Material: GCr15 High-Carbon Chrome Steel

• Locking Mechanism: Eccentric Locking Collar (Self-tightening under rotation direction)

• Outer Ring Type: Cylindrical Outer Ring (or spherical depending on housing match; designed for standard insert housings)

• Sealing Type: Dual Protective Rubber Contact Seals

💡 Core Engineering Benefits

• Quick & Secure Mounting: The integrated eccentric locking collar allows for fast installation and automatically tightens with shaft rotation, preventing slippage under high loads.

• Precision Dimensions: Manufactured strictly to 30x62x22.2mm standards, ensuring a drop-in replacement fit for standard 206-series housed units.

• Robust Durability: Premium chrome steel metallurgy ensures high load capacity, excellent wear resistance, and extended operating lifespans.

• Sealed Protection: Factory-packed with high-temperature grease and tightly sealed against abrasive dust, dirt, and moisture.

🚜 Primary Applications

• Agricultural Machinery: Combine harvesters, seeders, and grain auger drives.

• Material Handling: Roller conveyors, packaging machines, and sorting systems.

• Industrial Equipment: Fan blowers, HVAC mechanical units, and general power transmission setups.
