Precision 30mm CSA206 Eccentric Locking Collar Insert Bearing | 30mm Bore x 62mm Outer Diameter x 35.7mm Width | Industrial Power Transmission Unit (Cross: SA206-30MM, NTN AELS206N, AMI/Peer FHR206-30MM/KHR206, FYH SAA206FP7, Continental RA106, SKF YET206)

⚓ Specification & Global Interchange Hub

Part Number Designation: CSA206-30 (30mm Eccentric Collar Series)

Comprehensive Brand Interchange Directory:

Universal Industrial Codes: SA206-30MM / CSA206

NTN Equivalent: AELS206N

AMI / Peer Designation: FHR206-30MM / KHR206

FYH Equivalent: SAA206FP7

Continental Equivalent: RA106

SKF Equivalent: YET206

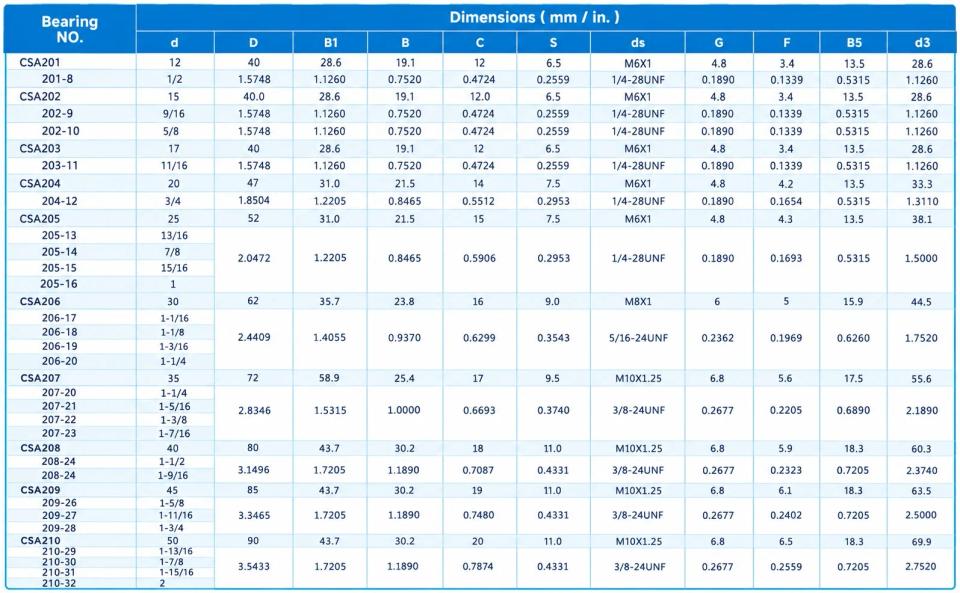

Metric Bore Dimension (d): 30 mm

Outer Ring Diameter (D): 62 mm

Total Assembly Width (B): 35.7 mm (Optimized profile for robust load capacity and secure housing fit)

Material Architecture: High-Grade Chrome Steel (Vacuum degassed for enhanced fatigue life and wear resistance)

💎 Engineering Architecture & Performance Merits

Eccentric Locking Collar System: Features a matching eccentric locking collar that tightens securely onto the shaft via simple rotation, ensuring rapid and vibration-proof installation.

Spherical Outer Ring Contour: Self-aligning design accommodates initial static misalignments between the shaft and housing supports.

Dual-Lip Contact Sealing: Equipped with reinforced rubber seals and metal flingers to effectively retain premium lithium grease while sealing out dust and moisture.

Pre-Lubricated & Maintenance-Ready: Factory-filled with high-performance anti-friction grease for immediate, reliable deployment.

🚀 Target Industrial Sectors & Deployment Fields

Agricultural Machinery: Combine harvesters, heavy grain augers, seeders, and large conveyor idlers.

Material Handling & Packaging: Heavy belt conveyors, sorting lines, and industrial roller beds.

Industrial Fans & Blowers: Large HVAC ventilation units, commercial air handlers, and high-capacity motor pulley drives.
