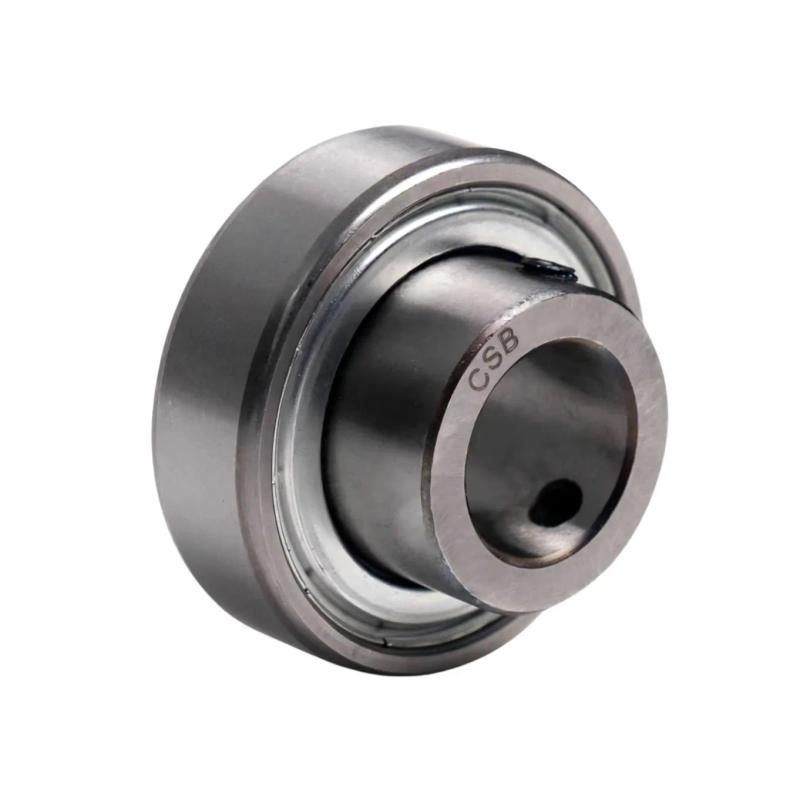

Precision 25mm CSB205 Insert Ball Bearing | 25mm Bore x 52mm Outer Diameter x 15mm Width | Industrial Power Transmission Unit (Cross: Fafnir/FAG YA025RR/AY25-NPP, Peer/Link-Belt FHSR205-25MM/SL-25MM, NTN/Asahi ASS205N/SB205-25MM, FYH/AMI SBB205KG5/BR5, 1325-25, CUS205, RAE25RR)

💠 Specification & Global Interchange Hub

Part Number Designation: CSB205 / CSB205-25MM (Metric Insert Bearing Series)

Comprehensive Brand & Cross-Reference Directory:

Fafnir / FAG Equivalent: YA025RR / AY25-NPP

Peer / Link-Belt Equivalent: FHSR205-25MM / SL-25MM

NTN / Asahi Equivalent: ASS205N / SB205-25MM

FYH / AMI Equivalent: SBB205KG5 / BR5

Alternative Industry Codes: 1325-25, CUS205, RAE25RR

Metric Bore Dimension (d): 25 mm

Outer Ring Diameter (D): 52 mm

Total Assembly Width / Thickness (B): 15 mm (Low-profile optimization for compact housing clearances)

Material Architecture: High-Grade Chrome Steel (Vacuum degassed for enhanced fatigue life, hardness, and wear resistance)

⭐ Engineering Architecture & Performance Merits

Spherical Outer Ring Profile: Features a self-aligning outer contour that accommodates initial static misalignments between shafts and mounting housings.

Effective Contact Sealing: Equipped with advanced multi-lip rubber seals bonded to steel flingers to securely retain premium grease and lock out dust, debris, and moisture.

Pre-Lubricated & Maintenance-Ready: Factory-filled with high-performance anti-friction grease for immediate deployment and long-term trouble-free operation.

Precision Bore & Raceway Finish: Superfinished raceways ensure whisper-quiet rotation, minimal vibration, and optimal energy efficiency.

🚚 Target Industrial Sectors & Deployment Fields

Light Agricultural Machinery: Small grain elevators, seeders, sorting tables, and compact irrigation drives.

Material Handling & Conveyors: Light belt conveyors, package sorting lines, and roller beds.

General Industrial Equipment: HVAC fan units, textile machinery, woodworking tools, and packaging equipment drives.
