Heavy-Duty 55mm SSUC211 Solid Stainless Steel Insert Bearing | 55mm Bore x 100mm Outer Diameter x 55.6mm Width | Sanitary Washdown Corrosion-Resistant Unit (Cross: SUC211-55MM/SSUC211, MUC211-55MM, FYH UC211-55MMS6, Timken GY1115KRRB, Dodge INS-SC-55M)

🛸 Specification & Global Interchange Hub

• Part Number Designation: SSUC211 (55mm Metric Heavy-Sanitary Series)

• Comprehensive Brand Interchange Directory:

  • Universal Industrial Codes: SSUC211-55MM / SSUC211

  • Cross-Brand Stainless Prefix: MUC211-55MM

  • FYH Stainless Designation: UC211-55MMS6

  • Fafnir / Timken (Chrome Steel Geometry Equivalent): GY1115KRRB

  • Dodge Geometry Equivalent: INS-SC-55M

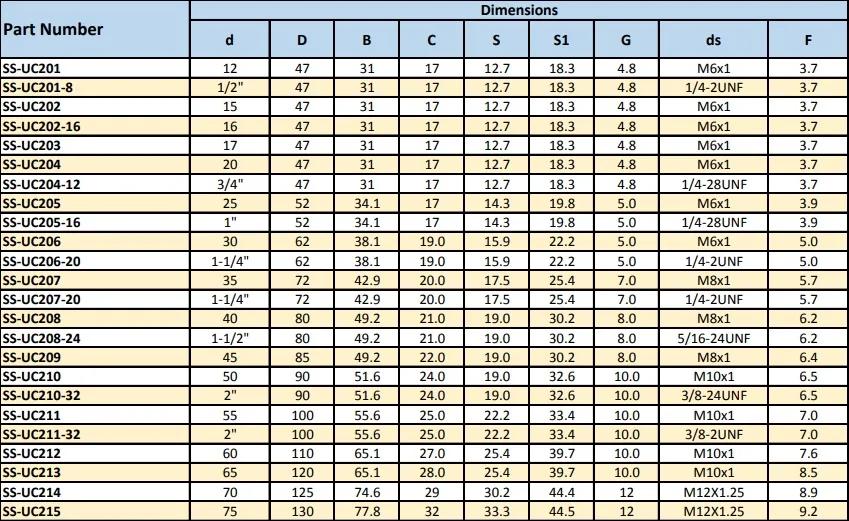

• Metric Bore Dimension (d): 55 mm

• Outer Ring Diameter (D): 100 mm

• Total Assembly Width (B): 55.6 mm (Extended inner ring profile optimized for heavy radial load distribution)

• Material Architecture: Solid Anti-Corrosive Stainless Steel (Engineered for maximum oxidation immunity and chemical resistance)

⚙️ Engineering Architecture & Performance Merits

• Twin Set-Screw Lock Mechanism: Precisely engineered set-screws on the extended inner ring deliver balanced radial clamping force to prevent shaft rotation during high-torque operation.

• Spherical Self-Aligning Design: Features an outer ring contour that dynamically adjusts to compensate for minor shaft deflections and housing misalignments.

• Advanced Seal Shielding: Equipped with high-performance food-grade rubber contact seals backed by stainless steel flingers to lock out moisture, chemicals, and solid particle debris.

• Hygienic Factory Lubrication: Pre-filled with certified NSF-compliant food-safe grease, making it immediately ready for cleanroom and sanitary service.

🚚 Target Industrial Sectors & Deployment Fields

• Food & Beverage Processing: Heavy meat-sorting conveyors, large bottling wheels, and agricultural washing lines.

• Pharmaceutical & Chemical Machinery: Cleanroom material handling systems, liquid mixing tanks, and metering pumps.

• Marine & Outdoor Infrastructure: Wastewater treatment agitators, coastal conveyor frames, and dockside handling equipment.
