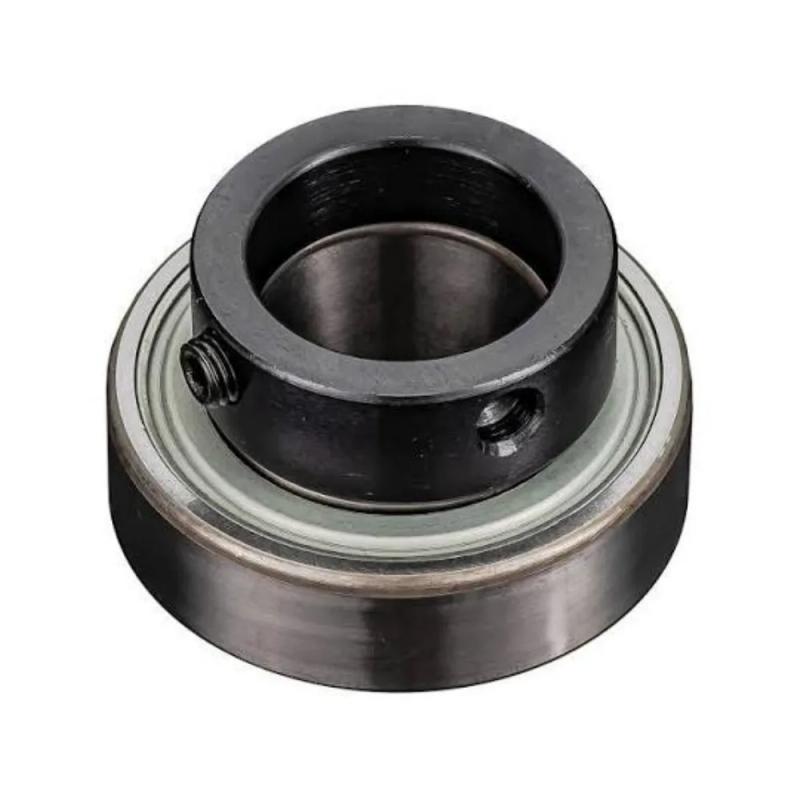

Precision 1-1/2" CSA208-24 Eccentric Locking Collar Insert Bearing | 1-1/2" Bore x 80mm Outer Diameter x 43.7mm Width | Industrial & Agricultural Power Transmission Unit (Cross: SA208-24, Timken/INA RA108RR/RA108-NPP, NTN AELS208-108N/AELS208-24, AMI/Peer KHR208-24/FHR208-24, SKF YET208-108, FYH SAA208-24, Browning SLE124)

🔧 Specification & Global Interchange Hub

• Part Number Designation: CSA208-24 / SA208-24 (1-1/2 Inch Eccentric Collar Series)

• Comprehensive Brand Interchange Directory:

  • Universal Industrial Codes: SA208-24 / CSA208-24

  • Timken / INA Equivalent: RA108RR / RA108-NPP

  • NTN Equivalent: AELS208-108N / AELS208-24

  • AMI / Peer Designation: KHR208-24 / FHR208-24

  • SKF Equivalent: YET208-108

  • FYH Equivalent: SAA208-24

  • Browning Equivalent: SLE124

• Imperial Bore Dimension (d): 1-1/2 Inches (approx. 38.10 mm)

• Outer Ring Diameter (D): 80 mm

• Total Assembly Width (B): 43.7 mm (Optimized profile for robust load capacity and secure housing fit)

• Material Architecture: High-Grade Chrome Steel (Vacuum degassed for enhanced fatigue life, shock resistance, and wear protection)

🌟 Engineering Architecture & Performance Merits

• Eccentric Locking Collar System: Features a matching eccentric locking collar that tightens securely onto the shaft via simple rotation, ensuring rapid, slip-resistant, and vibration-proof installation.

• Spherical Outer Ring Contour: Self-aligning design accommodates initial static misalignments between the shaft and housing supports under harsh operating conditions.

• Dual-Lip Contact Sealing: Equipped with reinforced rubber seals and metal flingers to effectively retain premium lithium grease while sealing out abrasive dust, dirt, and moisture.

• Pre-Lubricated & Maintenance-Ready: Factory-filled with high-performance anti-friction grease for immediate, reliable deployment in rugged industrial environments.

🚛 Target Industrial Sectors & Deployment Fields

• Heavy Agricultural Machinery: Combine harvesters, heavy grain augers, seeders, and large-scale tillage equipment drives.

• Material Handling & Bulk Conveying: Heavy-duty belt conveyors, sorting lines, and industrial roller beds.

• Industrial Equipment & Blowers: Large HVAC ventilation units, commercial air handlers, and high-capacity machinery pulley drives.
