الرئيسيةالمنتجاتمحامل الإدخالPrecision 1-13/16" CSA210-29 Eccentric Locking Collar Insert Bearing | 1-13/16" Bore x 90mm Outer Diameter x 43.7mm Width | Industrial & Heavy Agricultural Power Transmission Unit (Cross: SA210-29 Spherical OD, Timken/INA RA113RR/RA113-NPP, NTN AELS210-113N, AMI/Peer KHR210-29/FHR210-29, SKF YET210-113, FYH SAA210-29)
Precision 1-13/16" CSA210-29 Eccentric Locking Collar Insert Bearing | 1-13/16" Bore x 90mm Outer Diameter x 43.7mm Width | Industrial & Heavy Agricultural Power Transmission Unit (Cross: SA210-29 Spherical OD, Timken/INA RA113RR/RA113-NPP, NTN AELS210-113N, AMI/Peer KHR210-29/FHR210-29, SKF YET210-113, FYH SAA210-29)
CSA210-29
محامل الإدخال

Precision 1-13/16" CSA210-29 Eccentric Locking Collar Insert Bearing | 1-13/16" Bore x 90mm Outer Diameter x 43.7mm Width | Industrial & Heavy Agricultural Power Transmission Unit (Cross: SA210-29 Spherical OD, Timken/INA RA113RR/RA113-NPP, NTN AELS210-113N, AMI/Peer KHR210-29/FHR210-29, SKF YET210-113, FYH SAA210-29)

Engineered for demanding heavy-duty agricultural equipment, large conveyor systems, and robust industrial power transmission assemblies, the CSA210-29 1-13/16 inch eccentric locking collar insert bearing combines precision 1-13/16" x 90mm x 43.7mm dimensions with secure eccentric collar locking and a spherical OD variant. Designed for fast, reliable shaft mounting under heavy unidirectional loads, it serves as an exact direct replacement for SA210-29, Timken/INA RA113RR / RA113-NPP, NTN AELS210-113N, AMI/Peer KHR210-29 / FHR210-29, SKF YET210-113, and FYH SAA210-29.

راسلنا عبر البريد
✅ معتمد ISO🚀 عرض سعر خلال 24 ساعة🌍 شحن عالمي

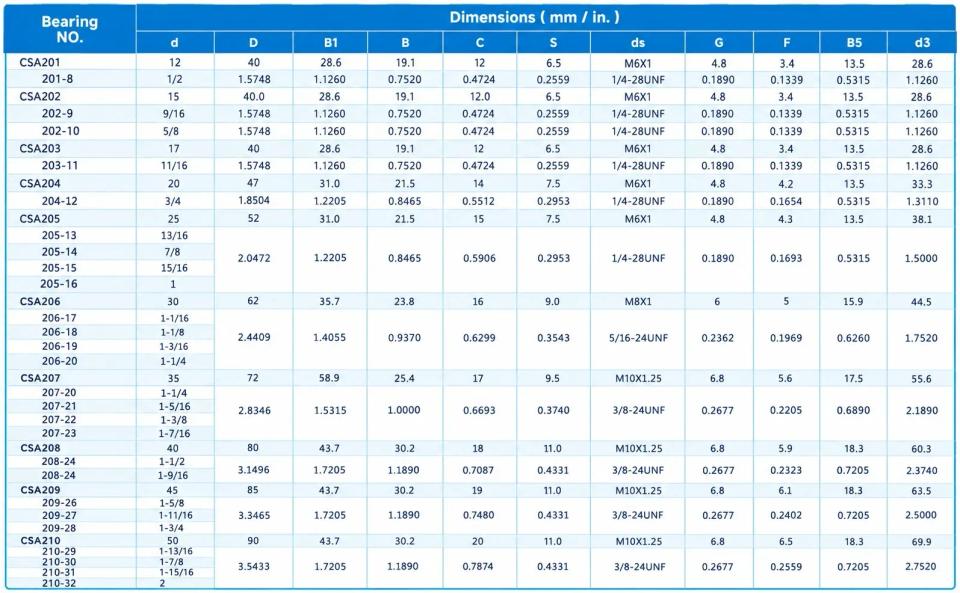

🛡️ Specification & Global Interchange Hub

Part Number Designation: CSA210-29 / SA210-29 (1-13/16 Inch Eccentric Collar Series)

Comprehensive Brand Interchange Directory:

Universal Industrial Codes: SA210-29 (Spherical OD variant) / CSA210-29

Timken / INA Equivalent: RA113RR / RA113-NPP

NTN Equivalent: AELS210-113N

AMI / Peer Designation: KHR210-29 / FHR210-29

SKF Equivalent: YET210-113

FYH Equivalent: SAA210-29

Imperial Bore Dimension (d): 1-13/16 Inches (approx. 46.04 mm)

Outer Ring Diameter (D): 90 mm (Spherical outer contour design)

Total Assembly Width (B): 43.7 mm (Optimized profile for robust load capacity and secure housing fit)

Material Architecture: High-Grade Chrome Steel (Vacuum degassed for enhanced fatigue life, shock resistance, and wear protection)

⭐ Engineering Architecture & Performance Merits

Eccentric Locking Collar System: Features a matching eccentric locking collar that tightens securely onto the shaft via simple rotation, ensuring rapid, slip-resistant, and vibration-proof installation.

Spherical Outer Ring Contour: Self-aligning design accommodates initial static misalignments between the shaft and housing supports under harsh operating conditions.

Dual-Lip Contact Sealing: Equipped with reinforced rubber seals and metal flingers to effectively retain premium lithium grease while sealing out abrasive dust, dirt, and moisture.

Pre-Lubricated & Maintenance-Ready: Factory-filled with high-performance anti-friction grease for immediate, reliable deployment in rugged industrial environments.

🚚 Target Industrial Sectors & Deployment Fields

Heavy Agricultural Machinery: Large combine harvesters, heavy grain augers, industrial seeders, and large-scale tillage equipment drives.

Material Handling & Bulk Conveying: Heavy-duty belt conveyors, mining sorting lines, and industrial roller beds.

Industrial Equipment & Blowers: Large HVAC ventilation units, commercial air handlers, and high-capacity machinery pulley drives.
