الرئيسيةالمنتجاتمحامل الإدخالHC206-20 Insert Ball Bearing | 1-1/4" Bore x 62mm OD x 19mm Width with Dual Set Screws (Replaces G1104KRRB, UEL206-104D1, VE-220S, YEL207-1042F, INS-SXR-104, KH206-20)
HC206-20 Insert Ball Bearing | 1-1/4" Bore x 62mm OD x 19mm Width with Dual Set Screws (Replaces G1104KRRB, UEL206-104D1, VE-220S, YEL207-1042F, INS-SXR-104, KH206-20)
HC200
محامل الإدخال

HC206-20 Insert Ball Bearing | 1-1/4" Bore x 62mm OD x 19mm Width with Dual Set Screws (Replaces G1104KRRB, UEL206-104D1, VE-220S, YEL207-1042F, INS-SXR-104, KH206-20)

Engineered for demanding industrial and agricultural power transmission, the HC206-20 wide inner ring bearing combines exact 1-1/4" x 62mm x 19mm dimensions with heavy-duty GCr15 chrome steel. Equipped with dual socket set screws, it guarantees slip-free shaft retention and long-term durability, directly interchangeable with G1104KRRB, UEL206-104D1, VE-220S, YEL207-1042F, INS-SXR-104, and KH206-20 OEM parts.

راسلنا عبر البريد
✅ معتمد ISO🚀 عرض سعر خلال 24 ساعة🌍 شحن عالمي

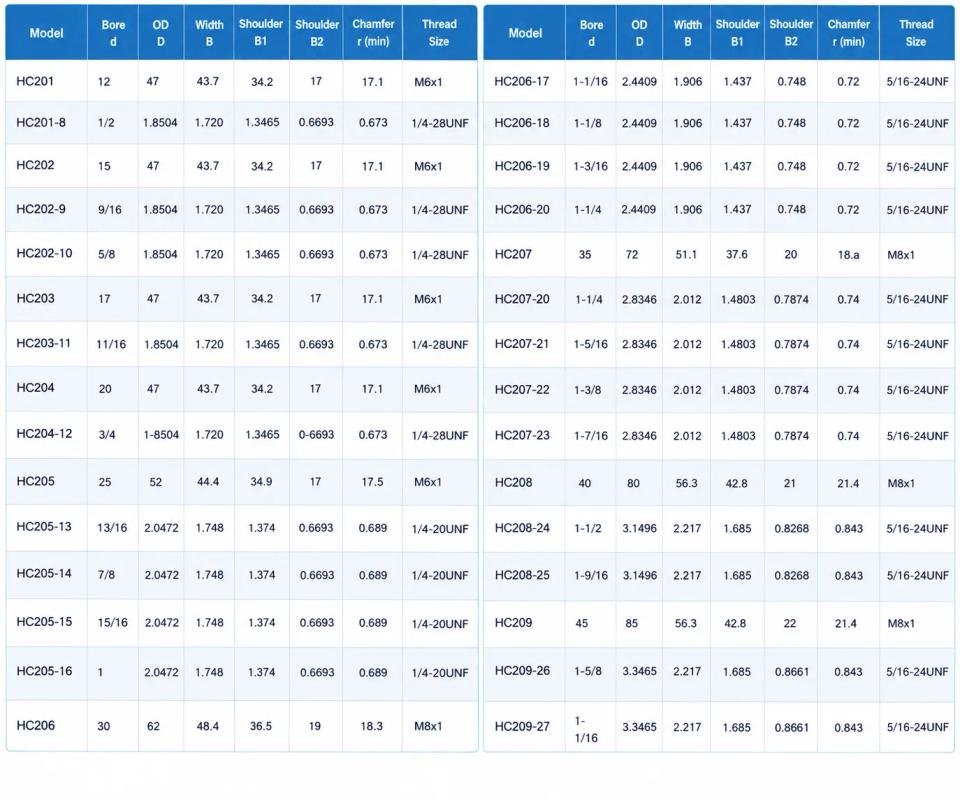

📋 Technical Specifications & OEM Cross-Reference

  • Product Model: HC206-20 (1-1/4" Bore)

  • OEM Interchange Part Numbers: G1104KRRB, UEL206-104D1, VE-220S, YEL207-1042F, INS-SXR-104, KH206-20, RA020RR

  • Imperial Bore Size: 1-1/4 Inches (1.250" / 31.75 mm)

  • Outer Diameter: 62 mm

  • Overall Thickness / Width: 19 mm (Extended wide inner ring profile)

  • Material Composition: High-Carbon GCr15 Chrome Steel

  • Locking Technology: Dual Socket Set Screws (Offset configuration for maximum shaft clamping bite)

  • Ring Geometry: Spherical Outer Surface (Compensates for initial angular offset and structural deflection)

  • Sealing Configuration: Heavy-Duty Dual Rubber Contact Seals with Metal Guards

🌟 Key Engineering Highlights

  • Slip-Resistant Clamping: The dual set-screw mechanism bites deeply into the shaft upon tightening, eliminating rotational play and axial drift under continuous heavy load cycles.

  • Optimized Stability Profile: The widened inner ring evenly distributes radial and tilting loads, shielding the shaft assembly from premature wear and stress fatigue.

  • Universal Housing Compatibility: Designed to drop smoothly into standard 206-series pillow blocks, flanged housings, and take-up assemblies without modification.

  • Advanced Contaminant Shielding: Factory pre-lubricated with high-performance industrial grease and guarded by double-lip contact seals to block out abrasive dust, dirt, and moisture.

⚙️ Primary Deployment Sectors

  • Agricultural Machinery: Combine harvesters, heavy grain augers, and tractor implement drivelines.

  • Industrial Conveying Systems: Heavy-duty roller conveyors, material sorting lines, and aggregate handling equipment.

  • General Mechanical Units: Industrial ventilation blowers, fan assemblies, and commercial gear transmission systems.
